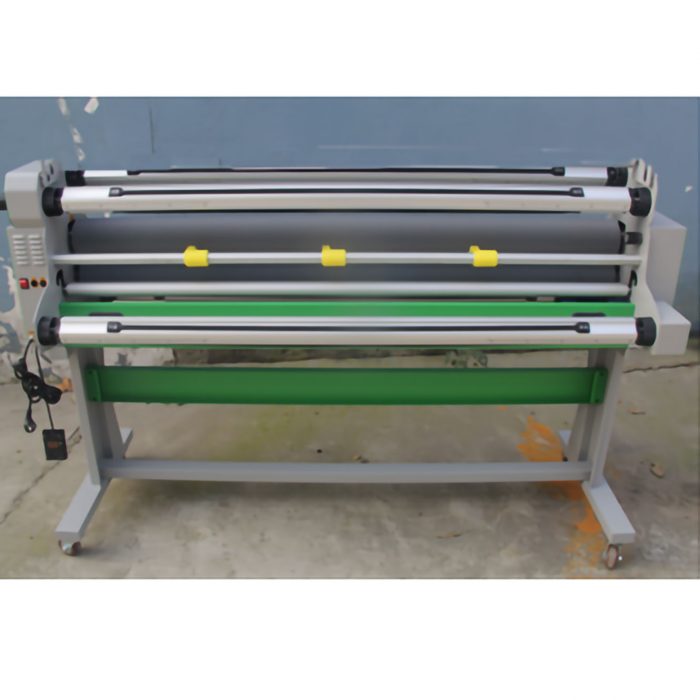

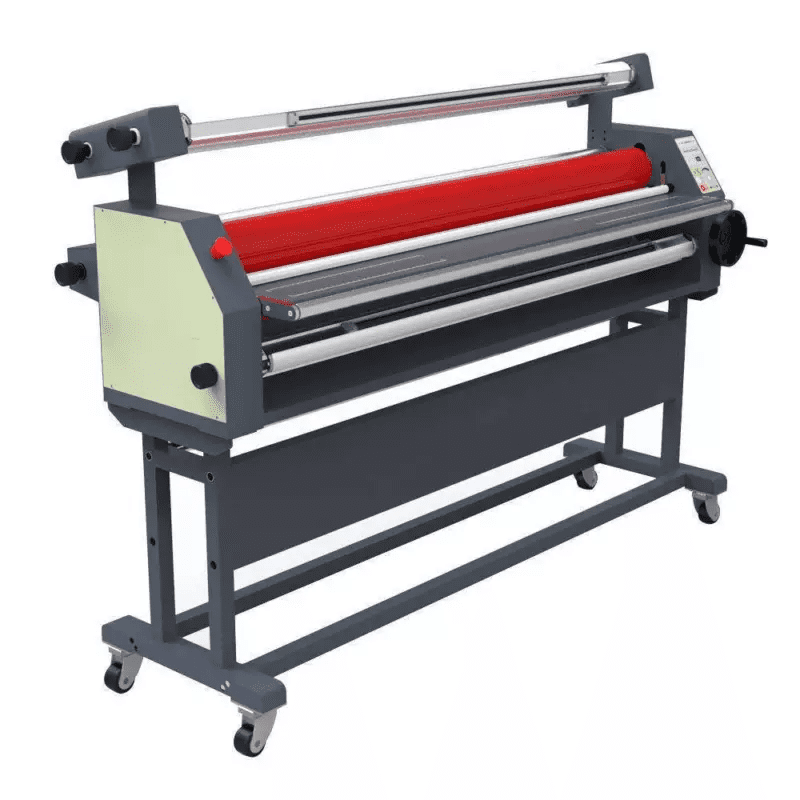

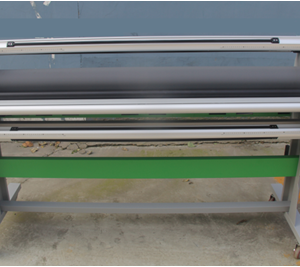

64″ 1700F5 Semi-auto Warm Laminating Machine – LAMINTING & CUTTING

Product Code: LM1700-F5

64″ 1700F5 Semi-auto Warm Laminating Machine – LAMINTING & CUTTING

Technical Parameter Features:

Heat-assist cold lamination for bubble-free application
High quality silicon roller ensures beautiful finishes
Manual nip-gap and pressure adjustment

Performance:

Warm lamination for bubble-free
More stable and better finishing with enhanced lifitng system
Silicon rollers for heavy duty work and longer life
A-alloy hand crank lifting provides even pressure

Operation:

Manual nip-gap and pressure adjustment for different medias

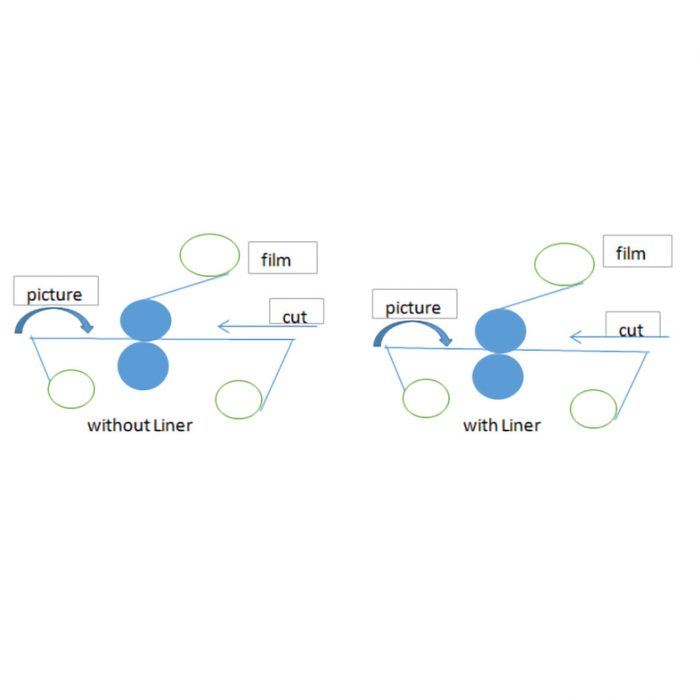

Easy tension grips provide convenience to Roll-to-Roll capacity
Winders & rewubders with easy tension grips provide more convenience

Parameter			1700-F5
Max lamination width			1630mm/64″
Max lamination thickness			23mm/0.9″
Max speed			6m/min
Max temp			60℃/176℉
Up and down			Hand Crank
Heating			Infrared
Warm up time			5-10 min
Power consumption			0.5-0.8kw/h
Power input			1400w
Volt			110V/220V
N.W.			150KG
